EFPC 2200-2400 Flexible Foam Peeling

About EFPC 2200-2400 Flexible Foam Peeling

foam peeling machine (drum block peeling into roller)

Model: EFPC-R1900 (rebonding foam & cork for under-floor ...)

Model: EFPC--HD1500 heavy duty bonded EPDM grandule peeling machine( bonded foam & EPDM & cork for under-floor)

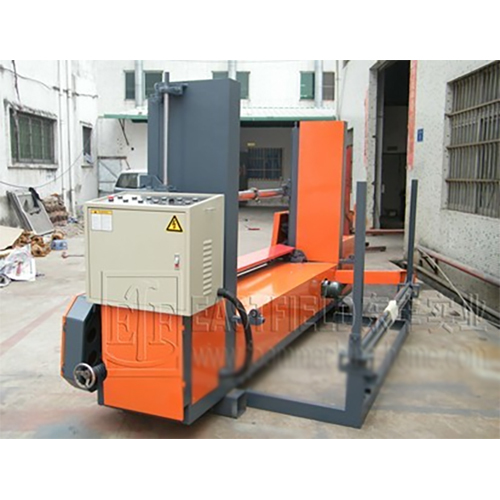

Model: EFPC--2200/2400 (flexible foam peeling )

specification data:

1.cutting dia-meter: 2000mm /(78 inch)
2.cutting length :2200mm /(84.645 inch)
3.cutting thickness:2~25mm/(0.078~0.984 inch)
4.total power :5kw
5.voltage: (380 v ,50hz . 3 phase)
6.turning speed :27m~30m/min/
meter(1.062~1.181inch/min)
7. setting thickness control by change gear
8.cutting density : 120kg/cubic ( max)
9.weight:2000kg
10.machine lay out size:4500L*w1700*h2100mm
working description:
By means of a peeling mandrel and an infinitely adjustable feed roller the cylinder block is put into a rotating movement. The peeled foil is continuously wound up by the wind-up machine.The required layer thickness is adjusted by means of our general way of change gears, different gear size result of different cutting thickness , compared with HHPC-2200 ,HHPC-HD1500, this model is most suitable for cutting lower density arrange within 90kg/cubic meter .
